Features
- Close Approach Temperatures
- Approach temperatures of 2 to 3°F are possible because of the true counterflow and high heat transfer efficiency of the plates
- Compact and Lightweight
- Requires 1/5 to 1/2 less floor space than other types of heat transfer equipment
- Lighter in total weight than other heat exchangers because of reduced liquid volume and the more efficient surface area for a given application
- Connections
- Studded ports are standard and can be fully lined to protect against erosion and corrosion of the frame
- Lap-joint, weld-neck, ferrule, and Victaulic connections are also available
- Connections can be mixed and matched to suit individual needs
- Cross Contamination Eliminated
- Each medium is individually gasketed
- The space between gaskets is vented to the atmosphere
- Easy to Inspect and Clean
- Remove the compression bolts and slide away the moveable end frame to inspect 100% of the Accu-Therm heat transfer surface
- Easy and economical to clean-in-place (CIP)
- Expandable
- Adjust the unit’s thermal performance by adding or removing plates
- Extensive Selection
- Heat transfer surface areas from 0.5 to 51 square feet
- Multiple embossed patterns
- Exclusive “free-flow” plate design
- Frame Assembly
- Heavy-duty construction
- Optimum plate pack compression and leak prevention
- Gaskets
- Designed to locate in gasket grooves positively
- Lock-in feature available on most models
- Highly Efficient Heat Transfer Performance
- “U” values of 1,500 and higher are possible!
- Accu-Therm plates promote high turbulence at low fluid velocities
- High turbulence results in very high heat transfer coefficients
- High Flow Rates
- Flows up to 24,000 GPM
- Port diameters up to 20"
- Inspection and Testing
- Rigorous quality assurance inspections
- Each circuit was independently tested at full design pressure
- ASME registration available
- Lower Cost
- More economical than other types of heat exchangers due to the higher thermal efficiency and lower manufacturing costs
- Multiple Duties with a Single Unit
- Heat or cool two or more fluids within the same unit by installing intermediate divider sections
- More Heat Transfer Surface
- Up to 25,000 square feet (2,323 square meters) of heat transfer surface in a single exchanger
- Reduced Fouling
- High turbulence, uniform fluid distribution, smooth plate surface, and high shear stresses reduce fouling
- Shrouds
- Optional OSHA-approved plate pack shrouds are available in attractive and durable embossed aluminum or 2B stainless steel to protect personnel
- Close Approach Temperatures
-
Specifications
Model Number A - in (cm) B - in (cm) C - in (cm) D - in (cm) Port Size - in (cm) Max Flow Rate - gpm (lpm) AT-4 27.4 (69.5) 7.5 (19.7) 18.9 (48.0) 2.4 (6.1) 1 (2.5) 50 (189) AT-10 37.1 (94.3) 10.9 (27.6) 27.1 (69.1) 4.6 (11.8) 2 (5.1) 200 (757) AT-20 52.2 (132.5) 17 (43.2) 34.2 (86.8) 8.3 (21.2) 3 (7.6) 450 (1,703) AT-40 79.9 (202.9) 21.6 (54.9) 48.3 (122.7) 10.1 (25.7) 4 (10.2) 800 (3,028) -
- Accu-Therm® Plate Heat Exchanger Installation & Operation Manual Download Accu-Therm® Plate Heat Exchanger Installation & Operation Manual Learn More Accu-Therm® Plate Heat Exchanger Installation & Operation Manual
- Accu-Therm Plate Heat Exchanger Service and Refurbishing Download Accu-Therm Plate Heat Exchanger Service and Refurbishing Learn More Accu-Therm Plate Heat Exchanger Service and Refurbishing
- Accu-Therm® Mixed Gasket Instruction Manual Download Accu-Therm® Mixed Gasket Instruction Manual Learn More Accu-Therm® Mixed Gasket Instruction Manual
- MTI Shipping Solutions Brochure Download MTI Shipping Solutions Brochure Learn More MTI Shipping Solutions Brochure
- Accu-Therm® Plate Heat Exchangers Brochure Download Accu-Therm® Plate Heat Exchangers Brochure Learn More Accu-Therm® Plate Heat Exchangers Brochure
- Accu-Therm® PHE Design Request Form Download Accu-Therm® PHE Design Request Form Learn More Accu-Therm® PHE Design Request Form
- Paul Mueller Company Capabilities Download Paul Mueller Company Capabilities Learn More Paul Mueller Company Capabilities
Features
- Close Approach Temperatures
- Approach temperatures of 2 to 3°F are possible because of the true counterflow and high heat transfer efficiency of the plates
- Compact and Lightweight
- Requires 1/5 to 1/2 less floor space than other types of heat transfer equipment
- Lighter in total weight than other heat exchangers because of reduced liquid volume and the more efficient surface area for a given application
- Connections
- Studded ports are standard and can be fully lined to protect against erosion and corrosion of the frame
- Lap-joint, weld-neck, ferrule, and Victaulic connections are also available
- Connections can be mixed and matched to suit individual needs
- Cross Contamination Eliminated
- Each medium is individually gasketed
- The space between gaskets is vented to the atmosphere
- Easy to Inspect and Clean
- Remove the compression bolts and slide away the moveable end frame to inspect 100% of the Accu-Therm heat transfer surface
- Easy and economical to clean-in-place (CIP)
- Expandable
- Adjust the unit’s thermal performance by adding or removing plates
- Extensive Selection
- Heat transfer surface areas from 0.5 to 51 square feet
- Multiple embossed patterns
- Exclusive “free-flow” plate design
- Frame Assembly
- Heavy-duty construction
- Optimum plate pack compression and leak prevention
- Gaskets
- Designed to locate in gasket grooves positively
- Lock-in feature available on most models
- Highly Efficient Heat Transfer Performance
- “U” values of 1,500 and higher are possible!
- Accu-Therm plates promote high turbulence at low fluid velocities
- High turbulence results in very high heat transfer coefficients
- High Flow Rates
- Flows up to 24,000 GPM
- Port diameters up to 20"
- Inspection and Testing
- Rigorous quality assurance inspections
- Each circuit was independently tested at full design pressure
- ASME registration available
- Lower Cost
- More economical than other types of heat exchangers due to the higher thermal efficiency and lower manufacturing costs
- Multiple Duties with a Single Unit
- Heat or cool two or more fluids within the same unit by installing intermediate divider sections
- More Heat Transfer Surface
- Up to 25,000 square feet (2,323 square meters) of heat transfer surface in a single exchanger
- Reduced Fouling
- High turbulence, uniform fluid distribution, smooth plate surface, and high shear stresses reduce fouling
- Shrouds
- Optional OSHA-approved plate pack shrouds are available in attractive and durable embossed aluminum or 2B stainless steel to protect personnel
Specifications
Model Number | A - in (cm) | B - in (cm) | C - in (cm) | D - in (cm) | Port Size - in (cm) | Max Flow Rate - gpm (lpm) |
---|---|---|---|---|---|---|
AT-4 | 27.4 (69.5) | 7.5 (19.7) | 18.9 (48.0) | 2.4 (6.1) | 1 (2.5) | 50 (189) |
AT-10 | 37.1 (94.3) | 10.9 (27.6) | 27.1 (69.1) | 4.6 (11.8) | 2 (5.1) | 200 (757) |
AT-20 | 52.2 (132.5) | 17 (43.2) | 34.2 (86.8) | 8.3 (21.2) | 3 (7.6) | 450 (1,703) |

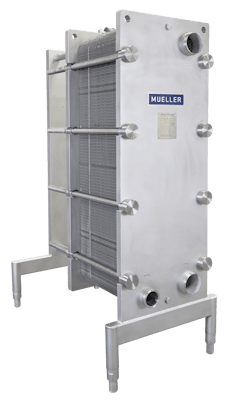

AT-40 | 79.9 (202.9) | 21.6 (54.9) | 48.3 (122.7) | 10.1 (25.7) | 4 (10.2) | 800 (3,028) |
