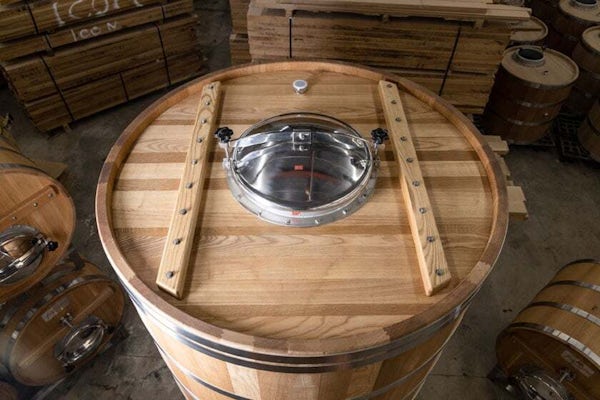

Mueller American Oak Wine Tank Top Manway
Mueller American Oak Wine Tank Toasting Close-Up

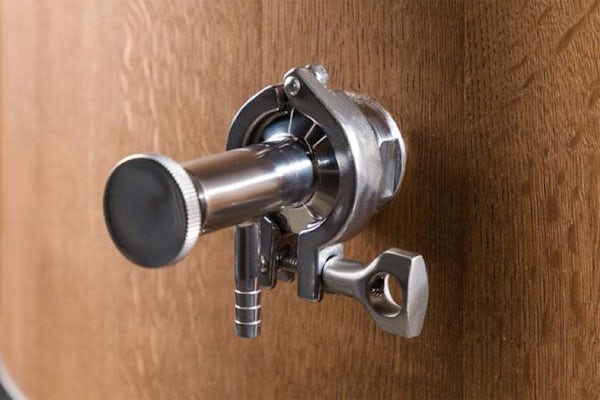

Mueller American Oak Wine Tank Tasting Port
Mueller American Oak Wine Tank Man Toasting
Mueller American Oak Wine Tank Front Manway Open

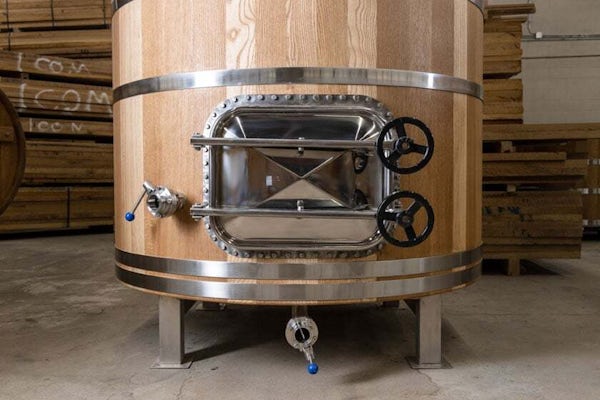

Mueller American Oak Wine Tank Front Manway Closed

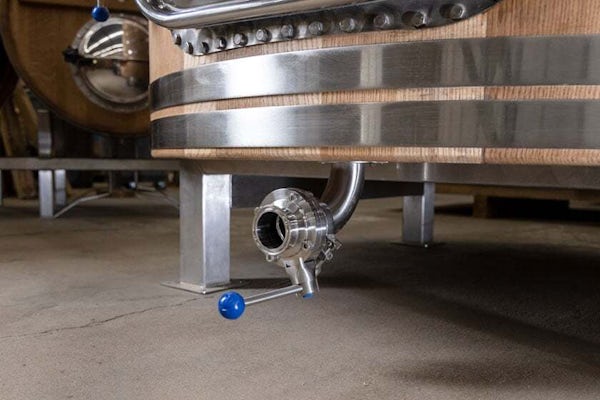

Mueller American Oak Wine Tank Drain Port
Mueller American Oak Wine Tank Construction
Mueller Mueller American Oak Wine Tank
Mueller American Oak Wine Tank Top Manway
Mueller American Oak Wine Tank Toasting Close-Up
Mueller American Oak Wine Tank Tasting Port
Mueller American Oak Wine Tank Man Toasting
Mueller American Oak Wine Tank Front Manway Open
Mueller American Oak Wine Tank Front Manway Closed
Mueller American Oak Wine Tank Drain Port
Mueller American Oak Wine Tank Construction

American Oak Wine Tanks

    • Wine
    • Tanks & Vessels
    • Cooling & Chilling
    • Storage
    • Fermentation
  1. Features

    Sealed for Quality

    Unlike French tanks that are butt jointed and can allow in too much air, our American White Oak tanks are crafted with finger joints for the tightest seal.

    Custom Toasting

    Chosen from exceptional-quality trees, the wood is dried in the open air for a year or longer to eliminate harsh flavors. Construction takes four weeks, and the tank is steamed to sanitize the wood and further mellow the oak profile. The final finish is toasted to your specifications based on the varietal you create.

    Stainless Details

    Complete with stainless steel bands and hardware, Mueller oak wine tanks come in standard, horizontal, fermenting, and puncheon models and can be custom-designed for your space. They are equipped with valves and delivered fully assembled, with upgrade options available.

    Optional Features

    • Toasting options
      • None, light, medium, or dark
    • CIP arm
    • Cooling plate
    • Winery logo plate
    • Stainless steel stand
  2. Specifications

    Size Options - Gallons (liters)
    150 (567.8)
    200 (757.1)
    300 (1,135.6)
    450 (1,703.4)
    600 (2,271.3)
    900 (3,406.9)
    1,200 (4,542.5)
    1,500 (5,678.1)
    1,800 (6,813.7)
    2,300 (8,706.4)
    3,100 (11,734.8)
    3,700 (14,006)
    6,200 (23,469.6)
    7,700 (29,147.7)
