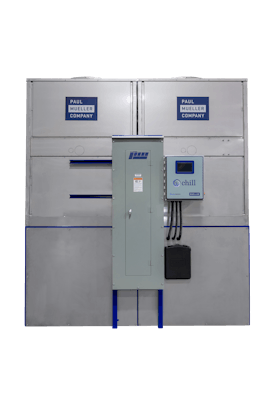

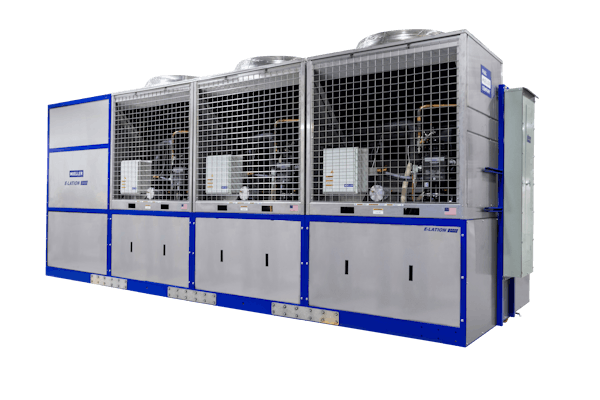

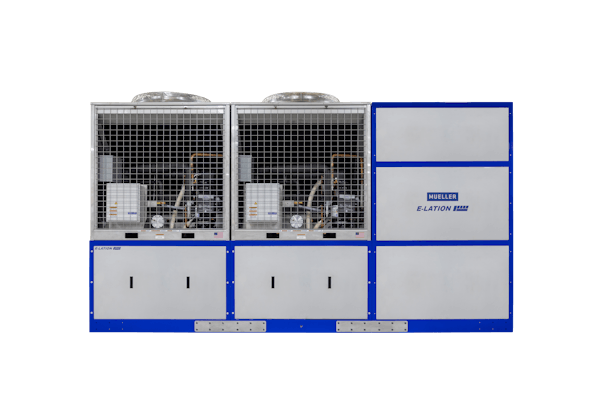

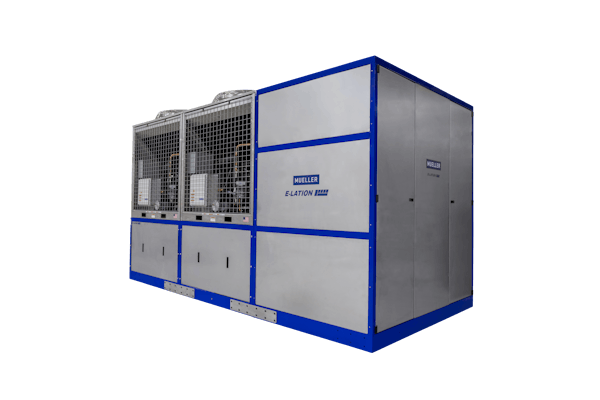

E-LATION™ Package Chiller

    • Dairy Farm
    • Dairy Processing
    • Refrigeration & Chilling
    • Cooling & Chilling

  1. Features

    • Built on the 15-horsepower E-Star® HiPerForm® platform (460 volts, 3 phase, 60 hertz)
    • Universal sizes from 60 through 240 HP (44.7 through 179 kW)
    • Mueller Chill™ control connected to MuellerSecure™
    • Plug-and-play design for easy chiller installation requiring minimal plumbing and wiring
    • Sized for a wide range of operating conditions from 0° to 110°F (-17.8° to 37.8°C)
    • E-LATION™ is built with existing components using the MuellerSecure platform, so servicing your equipment is a simple, familiar, and straightforward process
    • Hefty 500- to 1,000-gallon (1,892.7- to 3,785.4-liter) propylene glycol reservoir for the E-Series
    • Automatic compressor rolling starts that rotate with a “milk switch"
    • Copeland Scroll 15 HP (11.2 kW) compressors
    • E-Star HiPerForm with electronic valve control delivers precise and instantaneous refrigerant control
    • The chiller system advanced alarms and alerts via texts and emails with MuellerSecure technology
    • Factory charged with R-448a refrigerant
    • Two 5 HP (3.7 kW) glycol process pumps and two 5 HP (3.7 kW) glycol chiller pumps for automatic redundant glycol pump control
    • Two glycol loop systems (process and chiller)
    • Remote start capability
    • Indoor or outdoor installation options
    • Add-on chiller connection flanged ports
