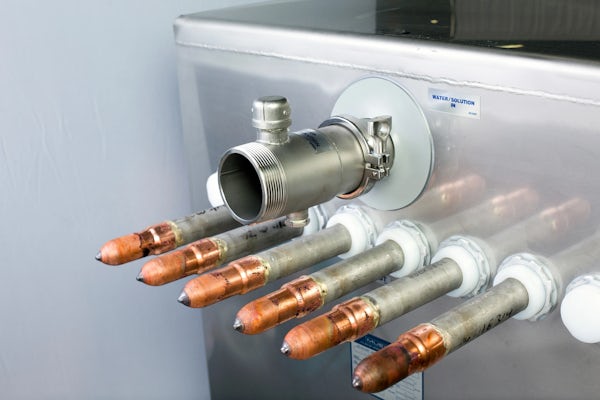

Mueller Falling Film Chiller Closeup
Mueller Falling Film Chiller Inside Temp Plate Closeup
Mueller Falling Film Chiller 4x8
Mueller Falling Film Chiller 4x8
Mueller Falling Film Chiller Closeup
Mueller Falling Film Chiller Inside Temp Plate Closeup
Mueller Falling Film Chiller 4x8

4 x 8 Falling Film Chiller

    • Dairy Processing
    • Food
    • Heat Transfer
    • Heat Transfer
    • Refrigeration & Chilling
    • Cooling & Chilling

  1. Features

    • Fully enclosed design puts an end to product contamination
    • Easy to clean and inspect with virtually no downtime for maintenance
    • The design of Mueller Temp-Plate® inflated heat transfer surface eliminates potential chiller freeze-up
    • Accepts incoming fluid temperatures over 80°F (26.7°C) without the need for a secondary heat exchanger
    • With a 4 x 8, extra-low flow rates range from 6 to 16 gpm (60.6 to 113.6 lpm), low flow rates range from 13 to 24 gpm (49.2 to 90.8 lpm) , and high flow rates range from 25 to 48 gpm (94.6 to 181.7) per evaporator

  2. Specifications

    Cabinet SizeNo. of PlatesDimensions (L x W x H) - in (cm)Maximum Shipping Weight - lbs (kg)Tank Capacity - gallons (liters)
    J 2-8 104.5 x 39.125 x 90.75 (265.4 x 99.4 x 230.5) 2,735 (1,240.6) 293 (1,109.1)
    K 2-16 104.5 x 72.375 x 90.75 (265.4 x 183.8 x 230.5) 5,220 (2,367.8) 525 (1,987.3)
    L 2-24 104.5 x 105.875 x 90.75 (265.4 x 268.9 x 230.5) 7,705 (3,495) 750 (2,839.1)
    M 2-32 104.5 x 139 x 90.75 (265.4 x 353.1 x 230.5) 10,190 (4,622.1) 1,113 (4,213.2)
