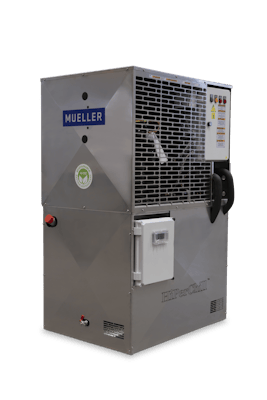

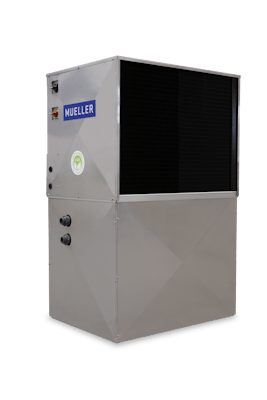

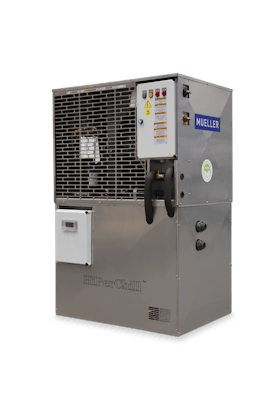

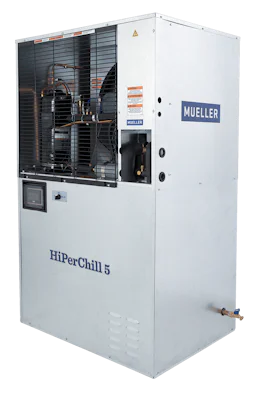

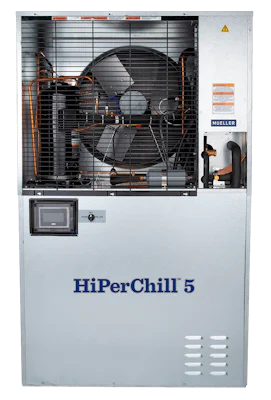

HiPerChill™ 5 Package Chiller
-
- Dairy Farm
- Brewing
-
- Refrigeration & Chilling
-
- Cooling & Chilling
-
Features
- E-Star HiPerForm Electronic Valve Control (EVC) technology for precise, instantaneous refrigerant control
- Digital capacity control adjusts the Scroll compressor’s output cooling capacity to meet milk flow demands as the load varies
- Quiet EC fan motor with variable speed control keeps the refrigerant pressure constant
- 3 horsepower (2.2 kW) propylene glycol water circulation pump.
- Insulated, 37-gallon (140.1-liter) glycol reservoir
- Remote start capability
- Touch-screen control
- Small footprint
-
Specifications
R-507 Refrigerant Model Number Horsepower (kW) Voltage Length - in (cm) Width - in (cm) Height - in (cm) HiPerChill-51ED-HFC 5 (3.7) 208-230/60/1 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) HiPerChill-53ED-HFC 5 (3.7) 208-230/60/3 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) HiPerChill-534ED-HFC 5 (3.7) 460/60/3 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) R-448A Refrigerant Model Number Horsepower (kW) Voltage Length - in (cm) Width - in (cm) Height - in (cm) HiPerChill-51ED-HFO* 5 (3.7) 208-230/60/1 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) HiPerChill 53ED-HFO* 5 (3.7) 208-230/60/3 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) HiPerChill-534ED-HFO* 5 (3.7) 460/60/3 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) HiPerChill-535ED-HFO* 5 (3.7) 575/60/3 40.13 (101.9) 30.38 (77.2) 65.44 (166.2) *HFO units are designed to operate with R-448a refrigerant
-
- US DFE Capital Goods Catalog NP 2025 EN Paul Mueller Company Download US DFE Capital Goods Catalog NP 2025 EN Paul Mueller Company Learn More US DFE Capital Goods Catalog NP 2025 EN Paul Mueller Company
- Mueller EU Capabilities Flyer EN Mueller Download Mueller EU Capabilities Flyer EN Mueller Learn More Mueller EU Capabilities Flyer EN Mueller
- MTI Shipping Solutions Brochure - EN - Paul Mueller Company Download MTI Shipping Solutions Brochure - EN - Paul Mueller Company Learn More MTI Shipping Solutions Brochure - EN - Paul Mueller Company
- Mueller® Capabilities Flyer - EN - Paul Mueller Company Download Mueller® Capabilities Flyer - EN - Paul Mueller Company Learn More Mueller® Capabilities Flyer - EN - Paul Mueller Company
Features
- E-Star HiPerForm Electronic Valve Control (EVC) technology for precise, instantaneous refrigerant control
- Digital capacity control adjusts the Scroll compressor’s output cooling capacity to meet milk flow demands as the load varies
- Quiet EC fan motor with variable speed control keeps the refrigerant pressure constant
- 3 horsepower (2.2 kW) propylene glycol water circulation pump.
- Insulated, 37-gallon (140.1-liter) glycol reservoir
- Remote start capability
- Touch-screen control
- Small footprint
Specifications
| Model Number | Horsepower (kW) | Voltage | Length - in (cm) | Width - in (cm) | Height - in (cm) |
|---|---|---|---|---|---|
| HiPerChill-51ED-HFC | 5 (3.7) | 208-230/60/1 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
| HiPerChill-53ED-HFC | 5 (3.7) | 208-230/60/3 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
| HiPerChill-534ED-HFC | 5 (3.7) | 460/60/3 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
| Model Number | Horsepower (kW) | Voltage | Length - in (cm) | Width - in (cm) | Height - in (cm) |
|---|---|---|---|---|---|
| HiPerChill-51ED-HFO* | 5 (3.7) | 208-230/60/1 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
| HiPerChill 53ED-HFO* | 5 (3.7) | 208-230/60/3 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
| HiPerChill-534ED-HFO* | 5 (3.7) | 460/60/3 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
| HiPerChill-535ED-HFO* | 5 (3.7) | 575/60/3 | 40.13 (101.9) | 30.38 (77.2) | 65.44 (166.2) |
*HFO units are designed to operate with R-448a refrigerant
