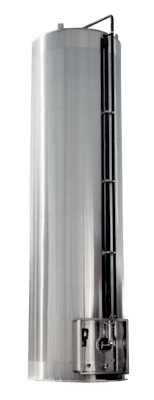

Mueller Dairy Silo

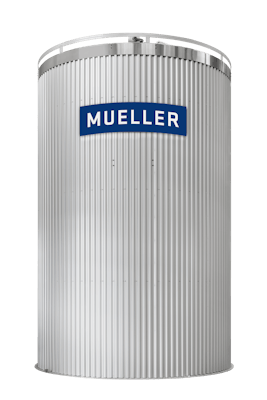

Silver Jacket Mueller Silo

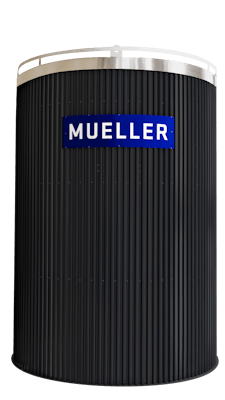

Black Jacket Mueller Silo

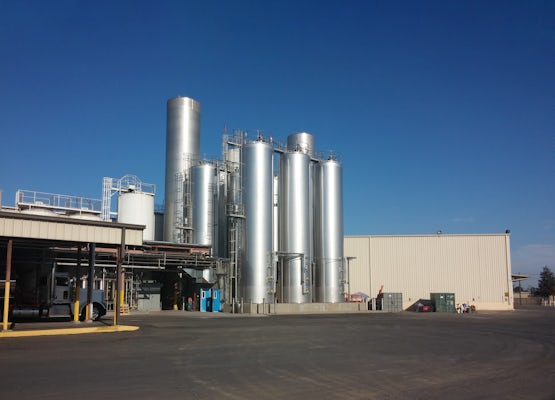

Mueller Standard Silos
Green Jacket Mueller Silo
MTI Silo Darigold
Mueller Dairy Silo
Silver Jacket Mueller Silo
Black Jacket Mueller Silo
Mueller Standard Silos
Green Jacket Mueller Silo
MTI Silo Darigold

Standard Silo

    • Dairy Processing
    • Consumer Beverage
    • Brewing
    • Chemical
    • Food
    • Oil & Gas
    • Wine
    • Tanks & Vessels
    • Cooling & Chilling
    • Heating
    • Mixing

  1. Features

    • 5,000 – 70,000 gallon (240 - 264,978 liter) capacities
    • Flat-pitched bottom head with full stainless steel support system
    • Type 304 stainless steel inner liner with large radius corners; No. 4(3-A) finish for sanitation and ease of cleaning
    • CIP system with vented door, separate vent line with screens, and removable manifold assembly
    • Horizontal mounted, USDA-accepted, mechanical agitator system built to 3-A Sanitary Standard 22
    • 3" rigid insulation on sides, 3" fiberglass on top, and 3" foam insulated outer bottom
    • Stainless steel 2B finish exterior
    • Liquid level gauge connection for constant monitoring of fluid volume
    • Insulated manway door with product sampling valve
    • Dial thermometer and recording thermometer wells
    • Designed for pad mounting on a flat concrete base
    • Heat tape and insulation on CIP and vent lines
    • Stainless steel alcove, 60" x 60" x 20" (cm: 152.4 x 152.4 x 50.8)
    • Seismic design

    Optional Features:

    • Engineered-to-order for your specific needs
    • Vertical agitation systems available for silos up to 40,000 gallons (151,416 liters)
    • Type 316L stainless steel inner liner for added durability
    • Mueller Temp-Plate® heat transfer surface for precise, consistent temperature control
      • ASME Code stamp offered on "SVW" models
    • Refrigeration controls can be included
    • Ladders, catwalks, and/or circumferential guardrails for additional personnel safety
    • CIP line vacuum breaker loop for added vacuum protection
    • Calculations performed by registered professional engineers
    • Stainless steel base ring

  2. Specifications

    Specifications and Sizing
    Capacity - gal (l)Inner Diameter - in (cm)Outer Diameter - in (cm)Height - in (cm)Agitator HP (kW)Agitator RPMEmpty Weight - lbs (kg)
    5,000 (18,927.1) 98 (248.9) 104 1/2 (265.4) 199 7/8 (507.7) 1 (0.75) 107 7,600 (3,447.4)
    6,000 (22,712.5) 98 (248.9) 104 1/2 (265.4) 230 5/8 (585.79) 1 (0.75) 107 8,200 (3,719.5)
    7,000 (26,497.9) 120 (304.8) 126 1/2 (321.3) 192 1/4 (488.3) 1 (0.75) 107 9,000 (4,082.4)
    8,000 (30,283.3) 120 (304.8) 126 1/2 (321.3) 212 1/4 (539.1) 1 (0.75) 107 9,600 (4,354.6)
    10,000 (37,854.1) 120 (304.8) 126 1/2 (321.3) 254 1/8 (645.5) 2 (1.5) 108 10,700 (4,853.5)
    15,000 (56,781.2) 120 (304.8) 126 1/2 (321.3) 356 5/8 (905.8) 2 (1.5) 108 13,300 (6,032.9)
    20,000 (75,708.2) 120 (304.8) 126 1/2 (321.3) 459 1/4 (1,166.5) 3 (2.2) 161 17,500 (7,938)
    25,000 (94,635.3) 140 (355.6) 146 1/2 (372.1) 424 1/2 (1,078.2) 3 (2.2) 161 18,900 (8,573)
    30,000 (113,562.3) 140 (355.6) 146 1/2 (372.1) 502 3/4 (1,277) 3 (2.2) 161 22,000 (9,979.2)
    40,000 (151,416.4) 140 (355.6) 146 1/2 (372.1) 653 1/4 (1,659.3) 3 (2.2) 161 27,900 (12,655.4)
    50,000 (189,270.5) 140 (355.6) 146 1/2 (372.1) 803 1/4 (2,040.3) 3 (2.2) 161 32,800 (14,878.1)
    60,000 (227,124.6) 147 (373.4) 153 (388.6) 871 3/8 (2,213.3) 3 (2.2) 161 44,926 (20,378.4)
    70,000 (264,978.7) 147 (373.4) 153 (388.6) 942 (2,392.7) 3 (2.2) 161 48,000 (21,772.8)
