Paul Mueller Company
Vandermill Mueller Wine Tank

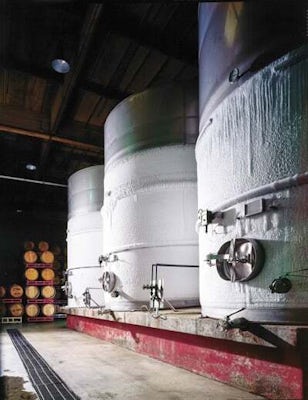

Mueller Wine Fermenters in Cellar
Vandermill Mueller Wine Tank
Mueller Wine Fermenters in Cellar

Wine Fermenter

    • Wine
    • Tanks & Vessels
    • Cooling & Chilling
    • Storage
    • Fermentation
    • Mixing

  1. Features

    • Mueller Temp-Plate® heat transfer surface provides efficient cooling
    • Truncated top heads
    • Flat-pitched bottom head with easy access to side drain
    • Top vent assembly and racking connections
    • Thermowells for temperature monitoring
    • Red wine tanks have an 18" (45.7 cm) outside opening manway flush with tank bottom
    • White wine tanks have a side entering, 16" x 20" (40.6 x 50.8 cm) inswing manway and 2" (5.1 cm) outlet clamp connection

    Optional Features

    • Insulated and fully welded stainless steel outer jacket
    • Sample valves
    • Polished material and weld finishes
    • Seismic-designed tank stands constructed of aluminum-painted carbon steel are also available
    • Combination red/white tank configuration
    • Security alcove

  2. Specifications

    Capacity - gal (l)Width - in (cm)Height - in (cm)Heat Transfer Surface - ft² (m²)
    500 (1,892.7) 49 (124.5) 85 (215.9) 19 (1.8)
    1,000 (3,785.4) 61 (154.9) 101 (256.5) 46 (4.3)
    1,500 (5,678.1) 71 (180.3) 112 (284.5) 52 (4.8)
    3,000 (11,356.2) 89 (226.1) 134 (340.4) 66 (6.1)
    4,500 (17,034.4) 202 (513.1) 153 (388.6) 99 (9.2)
    6,000 (22,712.5) 228 (579.1) 156 (396.2) 116 (10.8)
    12,000 (45,424.9) 240 (609.6) 208 (528.3) 276 (25.6)
