Standard Flanged and Dished Tank Head

Standard flanged and dished tank heads are the straightforward, go-to option for many processing vessels. Standard flanged and dished tank heads are non-code due to a typically smaller knuckle radius than other head styles. Go with a standard flanged and dished tank head if you are looking for a low-cost, high-quality commercial tank component.

Defining Features

  • Lower cost than comparable tank head styles with the same great quality
  • Circumferential polishing creates a sanitary look your customers want

Features

  • Polishing for sanitary applications and aesthetic appeal
  • Assembly with heat transfer can be provided
  • MTRs and other quality documents available

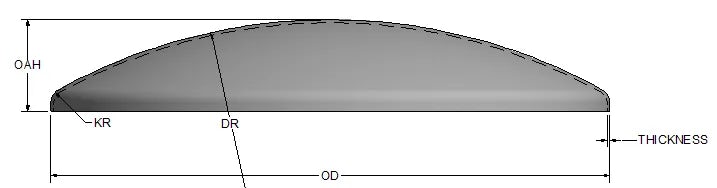

Specifications and Sizing

Diameter:  14" - 300"
Dish Radius:  Equal to 100% of outside diameter
Knuckle Radius:  2" (up to 192" diameter, larger KR for larger diameters)
Thickness:  12 gauge - 1"
